$19.95 Excl. tax

Blue Planet SUPGrip- patented easy carry handle for installation Read more..

Blue Planet SUPGrip Handle (For Installation) - $19.95

Blue Planet Surf offers the patented SUPGrip handle for installing in any SUP or over sized board that requires convenient and easy carrying. Developed for our own board line, the SUPGrip handle offers superior control and ease of use while not impacting the performance qualities of the board.

The SUPGrip is sold and distributed all over the world to SUP makers and enthusiasts.

Blue Planet Surf now offers an updated version of the SUPGrip handle that features a vent screw to allow your board to maintain homeostasis under temperature and pressure changes, as well as a molded rubber grip for maximum comfort and durability.

Please be sure to align the vent screw over the stringer of your board when installing so you vent both sides of your foam.

Shipping Domestic: $8 International: $30

To see how you can go about installing one yourself, please view the following video:

Installation steps:

1) Find balance point of board, make sure to account for the weight of the fin and leash

2) Mark the bottom of the box and set the plunge router to the depth of the box with flange.

3) Use a ½" diameter bit with a minimum of 2" depth to router the box opening (the box is 1 ¾" deep)

4) Mark the flange outline

5) Router the flange depth around the box, then mark and router main box and small hole for vent insert

6) sand deck around opening

7) Install box with thickened slow curing epoxy resin

8) glass over box

9) after curing cut excess glass with a razor blade and sand smooth, add finish coat

10) apply deck pad over handle and cut out openings with razor blade

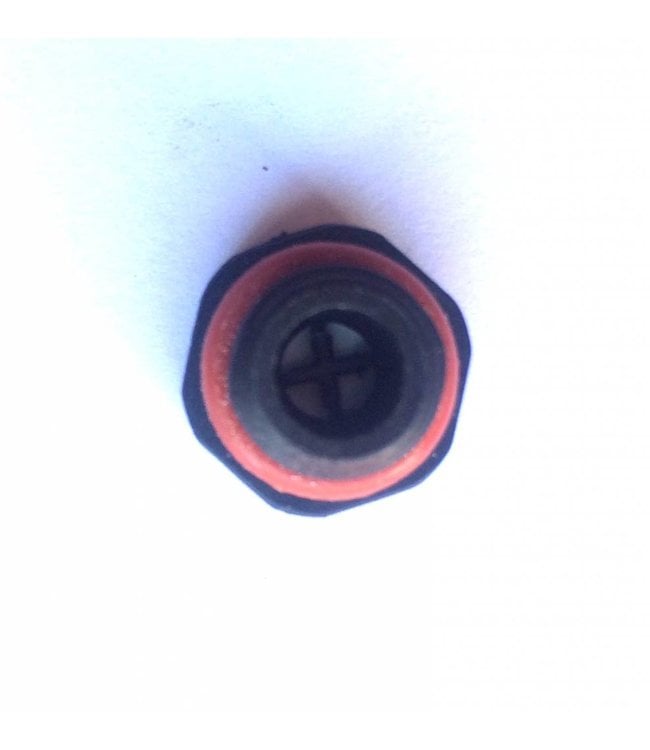

11) If you wish to use vent plug, drill holes to either side of stringer and use one of these self venting plugs: https://www.blueplanetsurf.com/blue-planet-gore-vent-plug-replacement-screw.html
